Maximum feed: ≦ 10 mm
Processing capacity: 60-200(t/h)
Performance characteristics: It has the characteristics of full automation, low energy consumption, large processing capacity, saving water resources and no pollution.
Applicable materials: It can be used in artificial sand making, coagulation station, wharf sand suction and other industries.
- Introduction

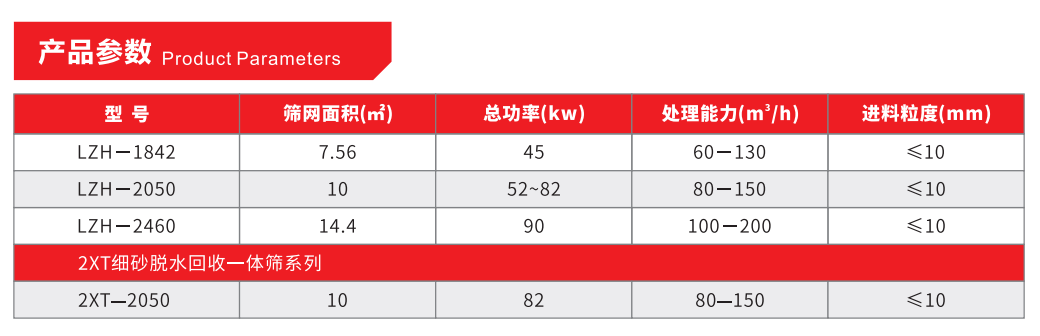

- parameters
This series product is our optimization design and develop a high efficiency fine sand recycling dehydration equipment, main effect to the collection of mud and sand separation, fine sand extraction, dehydration, effectively solve the fine material recycling, sand desliming, media, etc., have automation, low energy consumption, large quantity, save water, no pollution etc, are widely used in the system of artificial sand suction sand, coagulation, station, wharf, etc.
1. High working frequency, high vibration intensity, low moisture on the screen, high unit processing capacity;
2. The combination of motor + bearing block + coupling is used as the excitation source, with strong power and reliable structure;
3. Pre-dehydration sieve plate screen surface and level into 45 degrees installation, dewatering sieve plate negative inclination installation, increase the dehydration area and promote material dehydration as soon as possible to form a filter layer;
4. Torsional shear high-strength bolts are used for the connection between the side plate and the beam, the motor base and the strengthening plate, without weld, which avoids the side plate cracking caused by welding stress;
5. The sieve plate is made of imported polyurethane material, with high porosity, good water permeability and long service life;
6. Rubber spring, low noise, good vibration reduction effect;
7. The side plate is made of low-alloy structural steel, with good weldability and high strength;
8. Famous slurry pump and cyclone, durable effect is good.
