DPH (S) Single Cylinder Hydraulic Cone Crusher Series

Feeding granularity: 38mm-680mm

Production capacity: 40t / h-1500t / h

Adapt to materials:

Iron ore, copper ore, steel slag, slag, cobblestone, quartz, granite, basalt, diabase

  • Introduction
  • parameters
Introduction

This series product is our summary of crushing industry experience for many years, widely absorbs the domestic and foreign advanced technology, in close connection with the development of modern science and technology and the market demand, the optimization design and developed a new type of high efficient cone crusher, with simple structure and reliable, low failure rate, low production cost, operation stability is strong, maintenance is convenient wait for a characteristic,  Applicable to pebble, granite, basalt, iron ore, limestone, diabase and other hard materials in the medium and fine crushing operation, widely used in metallurgy, construction, hydropower, transportation, building materials and other fields.

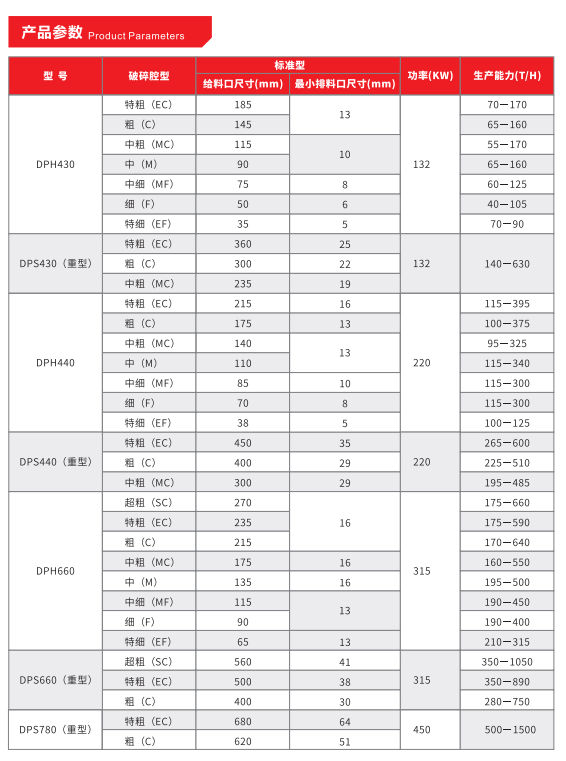

parameters

1. Special transmission system

Using spiral bevel gear transmission, high load capacity, smooth transmission, low noise.

2. Advanced sliding bearing design

Large carrying capacity, the adhesive ability is strong, have very strong bad working condition of the ability to adapt, to improve the reliability of equipment operation, sliding bearing adopted special oil wedge design, the contact area between the shaft and bearing formed stable oil film, avoids direct friction, reduces the calorific value, prolong the service life of bearing.

3. Safe and reliable insurance system

High pressure design to meet the low pressure requirements, the normal operation of the equipment when the high pressure margin, improve the reliability of the hydraulic system, can ensure the machine overload timely alarm.

4. U-t dustproof and sealing system

Positive pressure dustproof device, effectively prevent lubricating oil pollution and damage to bearings, prolong the service life of lubricating oil and equipment.

5. Integrated hydraulic lubrication station

Hydraulic station, lubrication station integrated design, save equipment installation space, maintenance and operation is more convenient.  Optimized tank volume, oil volume is only 1/3 of the conventional hydraulic lubrication station of the same specification, the daily operation cost is low.

6. High production efficiency, excellent grain type of finished products

The perfect combination of crushing stroke, crushing speed and crushing chamber type adapted to laminating crushing principle greatly improves the production capacity and working efficiency.  Under the condition of the same diameter of the big end of the moving cone, the yield can be increased about 35%~60%.

7. The crushing chamber adopts the laminating crushing principle

Not only improve the crushing yield and efficiency, but also improve the product grain shape, the product shape is cube.

8. Truly realize automatic adjustment of discharge port, automatic cavity cleaning function.

Automatic control system provides a variety of control modes for choice, can continuously detect the actual load inside the crusher, improve the crushing efficiency, automatic monitoring function display various operating parameters, real-time understanding of the operation of the crusher.

9. Intelligent control is accurate and convenient

Automatic control system provides a variety of operation modes for users to choose, can continuously monitor the actual load inside the equipment, real-time display of various operating parameters.
